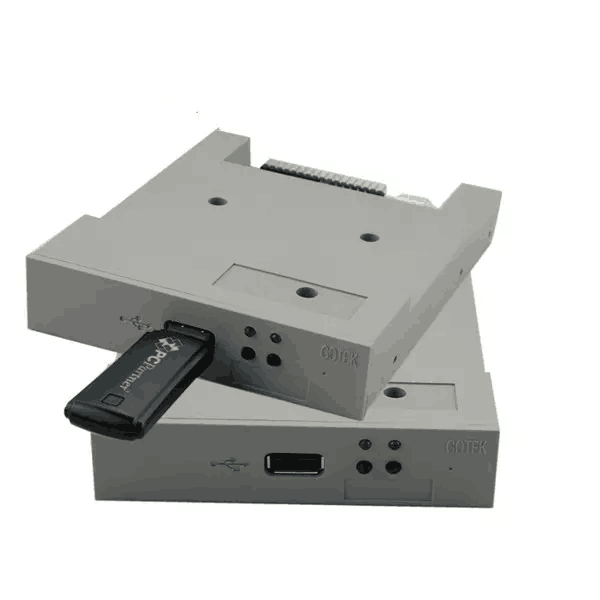

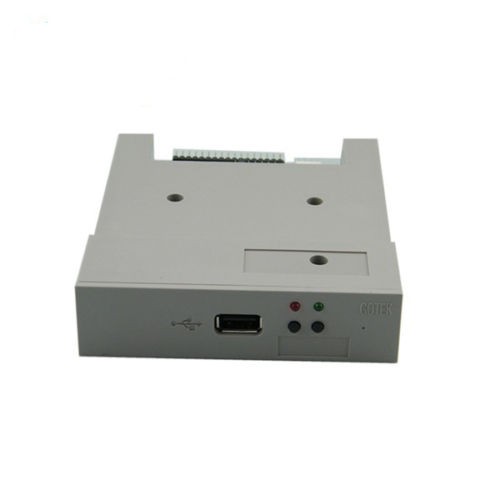

SFR1M44-SUE Gotek Floppy to USB Drive for Chinese Embroidery Machines with Dahao Mainboard SWF

SFR1M44-SUE Gotek Floppy to USB Drive for Chinese Embroidery Machines with Dahao Mainboard SWF

Model: SFR1M44-SUE code*: --

Suitable machines:

Embroidery machines use normal 1.44MB floppy disk an driver, example : Chinese embroidery use dahao control system.

Floppy driver with below function needed:

 Floppy driver with 34pin interface, and 5V DC power plug

 (example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )

 Use 2HD flpppy disk with 1.44MB capacity

 Format of disk : Cylinders: 80     Tracks: 160    Sectors/Track: 18

 Bytes/Sector: 512 Data transfer rate: 500 kbps

 Encoding method: MFM.

Features:

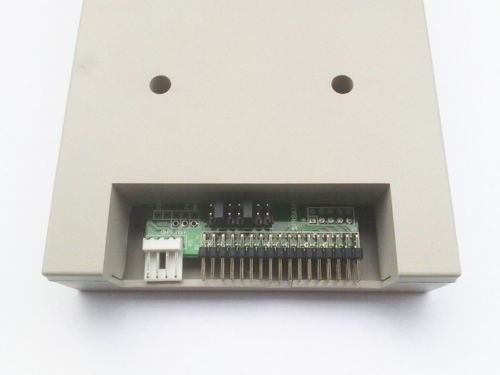

  34pin floppy driver interface, 5V DC power supply, easy to install.

  Use ordinery usb flash drive as the medium for transfer design. support FAT16/FAT32

  format.

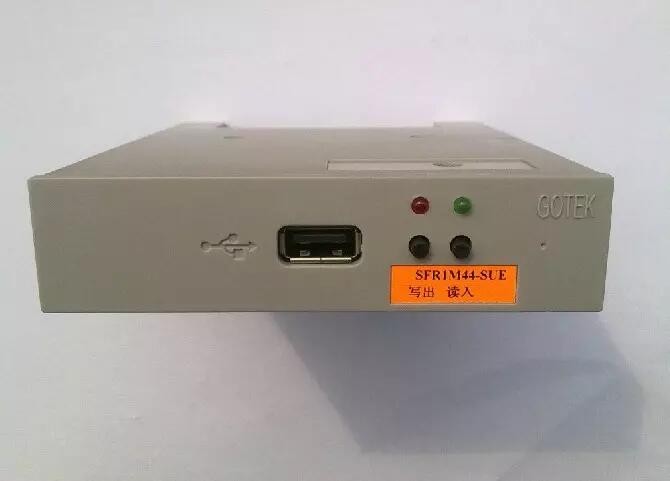

Panel:

 Green led: status of read and write operation

USB port: connect usb flash drive

Button:

Left button used to read data in, right botton used to write data out
