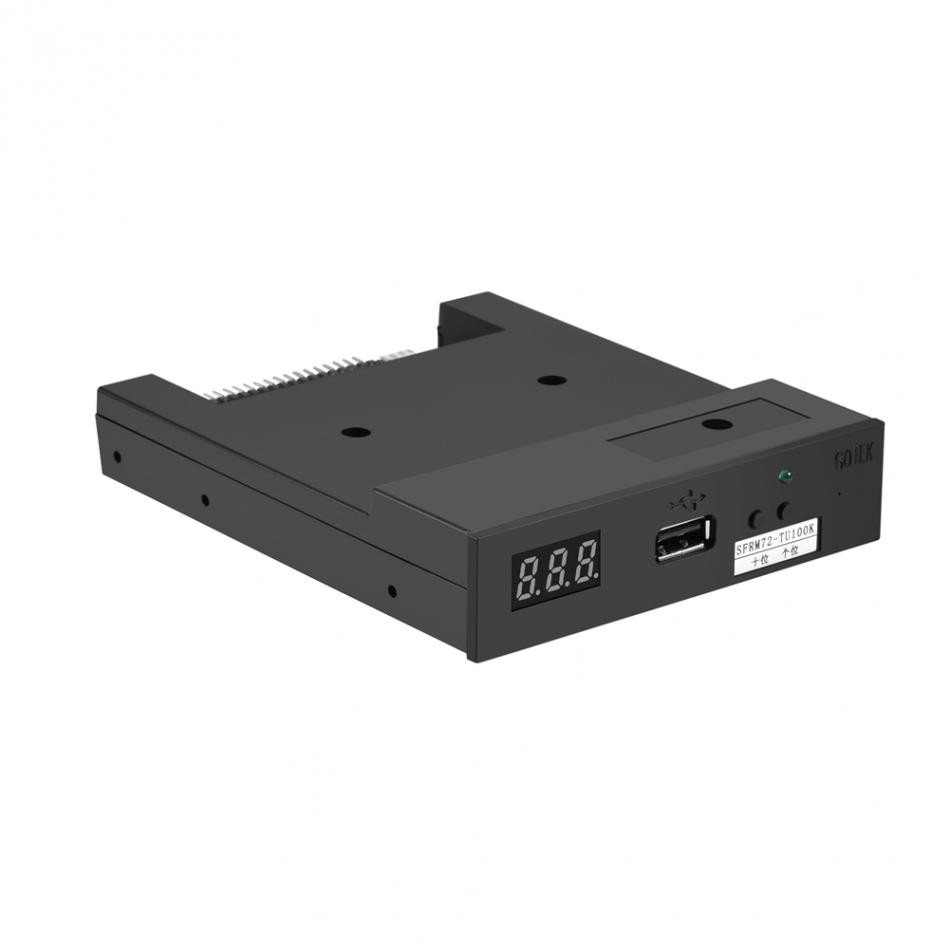

SFRM72-TU100K 3.5" USB 720KB Floppy Drive Emulator for Industrial Control Equipment

Model: SFRM72-TU100K code*: U10

Suitable machines:

Machines use 720KB floppy disk an driver, example : YAMAHA etc music instruments which use 720kb floppy disk and driver.

Floppy driver with below function needed:

Floppy driver with 34pin interface, and 5V DC power plug

(example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )

Use 2DD flpppy disk with 720KB capacity

Format of disk : Cylinders: 80 Tracks: 160 Sectors/Track: 9

Bytes/Sector: 512 Data transfer rate: 250 kbps

Encoding method: MFM.

Features:

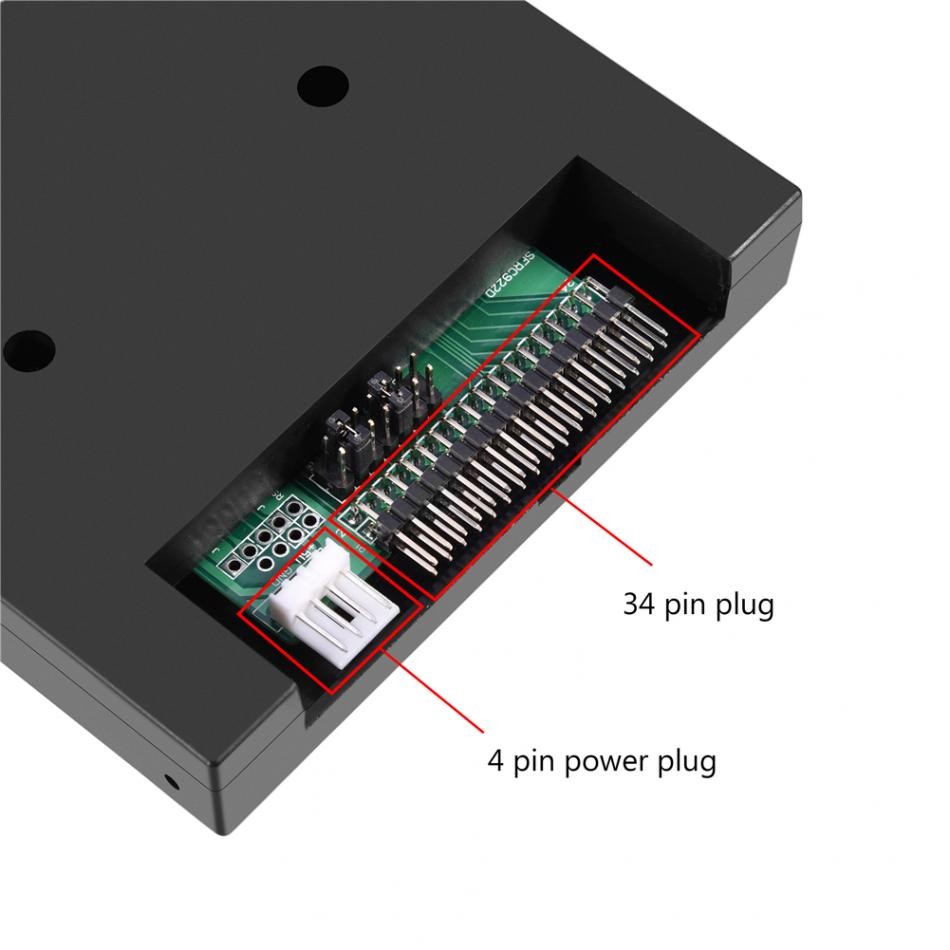

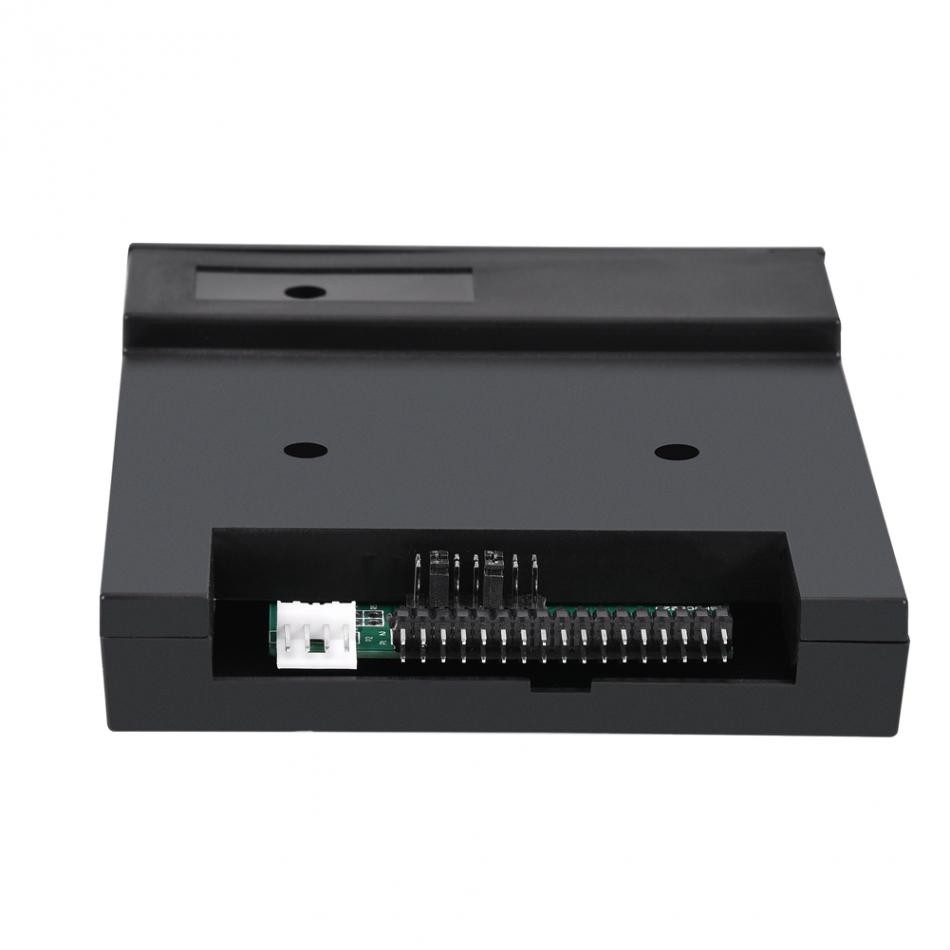

34pin floppy driver interface, 5V DC power supply, easy to install.

Use ordinery usb flash drive as the medium for transfer design.

1000pcs partitions in usb flash drive can be used.

Built-in self-format function. (read relevant documents to use this function)

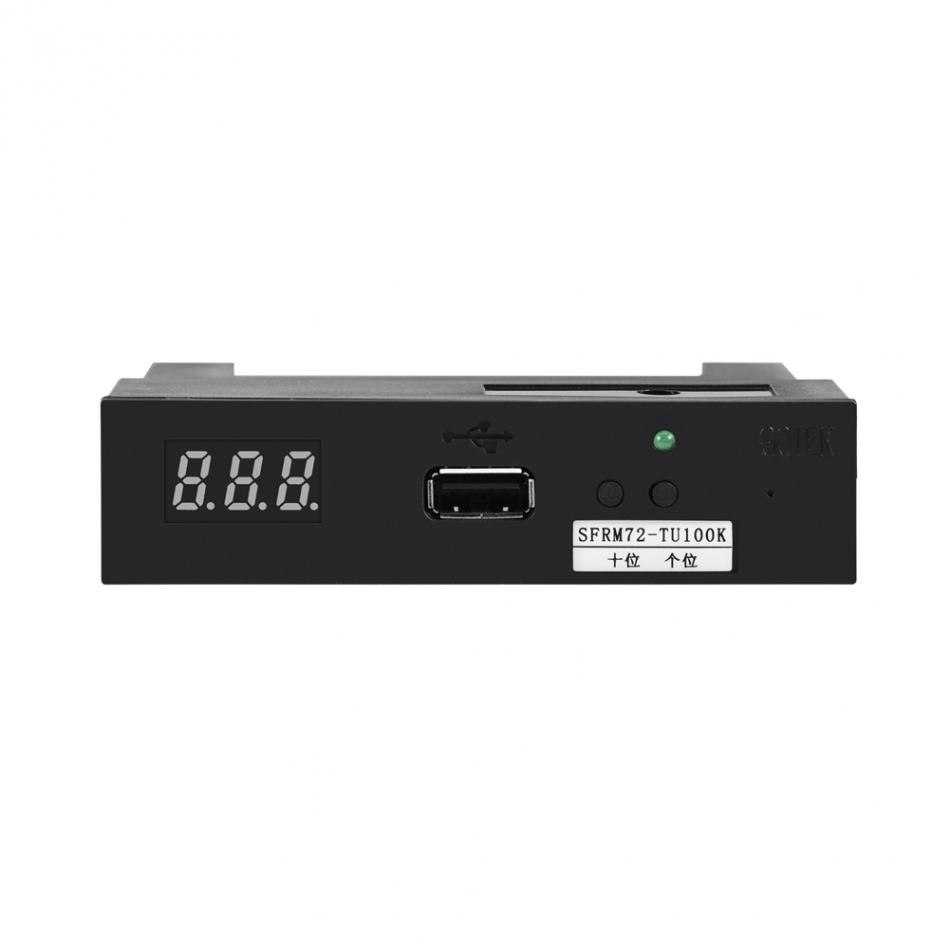

Panel:

8segment numbers: represent partitions number
Green led: status of read and write operation
USB port: connect usb flash drive
Button:
Left button used to rise ten-digit, right botton used to rise single-digit, press 2 button together to rise hundred-digit.
