SFR1M44-U Gotek USB Floppy Drive Emulator for Industrial Control Equipment

SFR1M44-U USB Floppy Drive Emulator is a floppy drive emulator that features high security data protection, easy installation and user-friendliness. This floppy drive emulator is great for industrial control equipment.

Suitable machines:

Machines use normal 1.44MB floppy disk and drive

Floppy drive with below function needed:

 Floppy driver with 34pin interface, and 5V DC power plug

 (example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )

 Use 2HD flpppy disk with 1.44MB capacity

 Format of disk : Cylinders: 80     Tracks: 160    Sectors/Track: 18

 Bytes/Sector: 512 Data transfer rate: 500 kbps

 Encoding method: MFM

Feature:

• Plug and play

• High security data protection

• Easy to install and user-friendly

• The USB stick needs to be formatted a 1.44MB partition by software

• Great for industrial control equipment with 1.44MB floppy drive

Specification:

• Model: SFR1M44-U

• Compatible with: Industrial control equipment with 1.44MB floppy drive

• Voltage: 5V DC

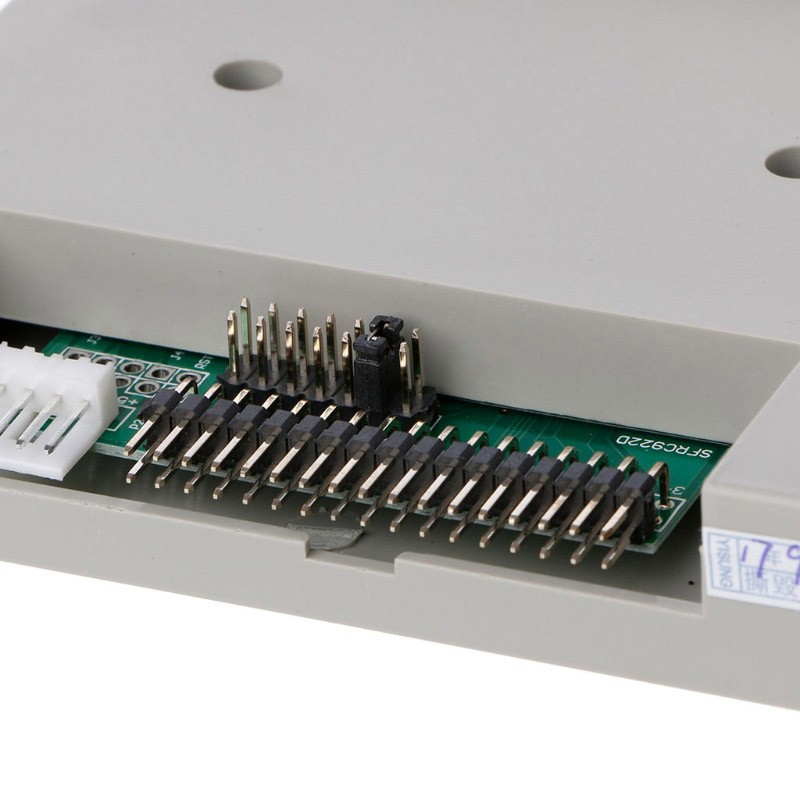

• Interface: USB port, 4 pin power plug (Power), 34 pin plug (Standard floppy drive)

• Housing Material: ABS

• Color: gray

• Size: 12.2 * 10.1 * 2.5cm / 4.8 * 4.0 * 1.0in

• Weight: approx. 101g

• Package Includes:

• 1 x USB Emulator

Note:
Please note that the product does not come with digital display and buttons.
