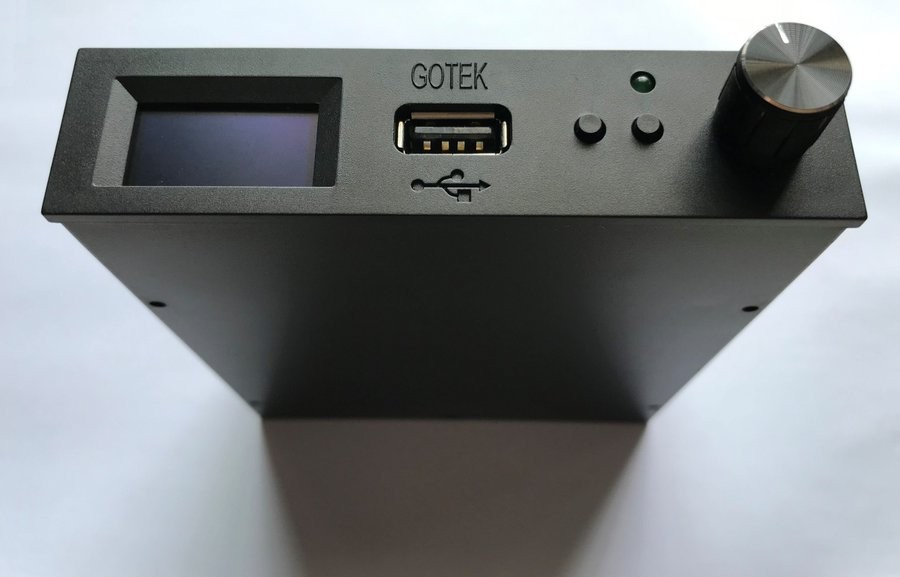

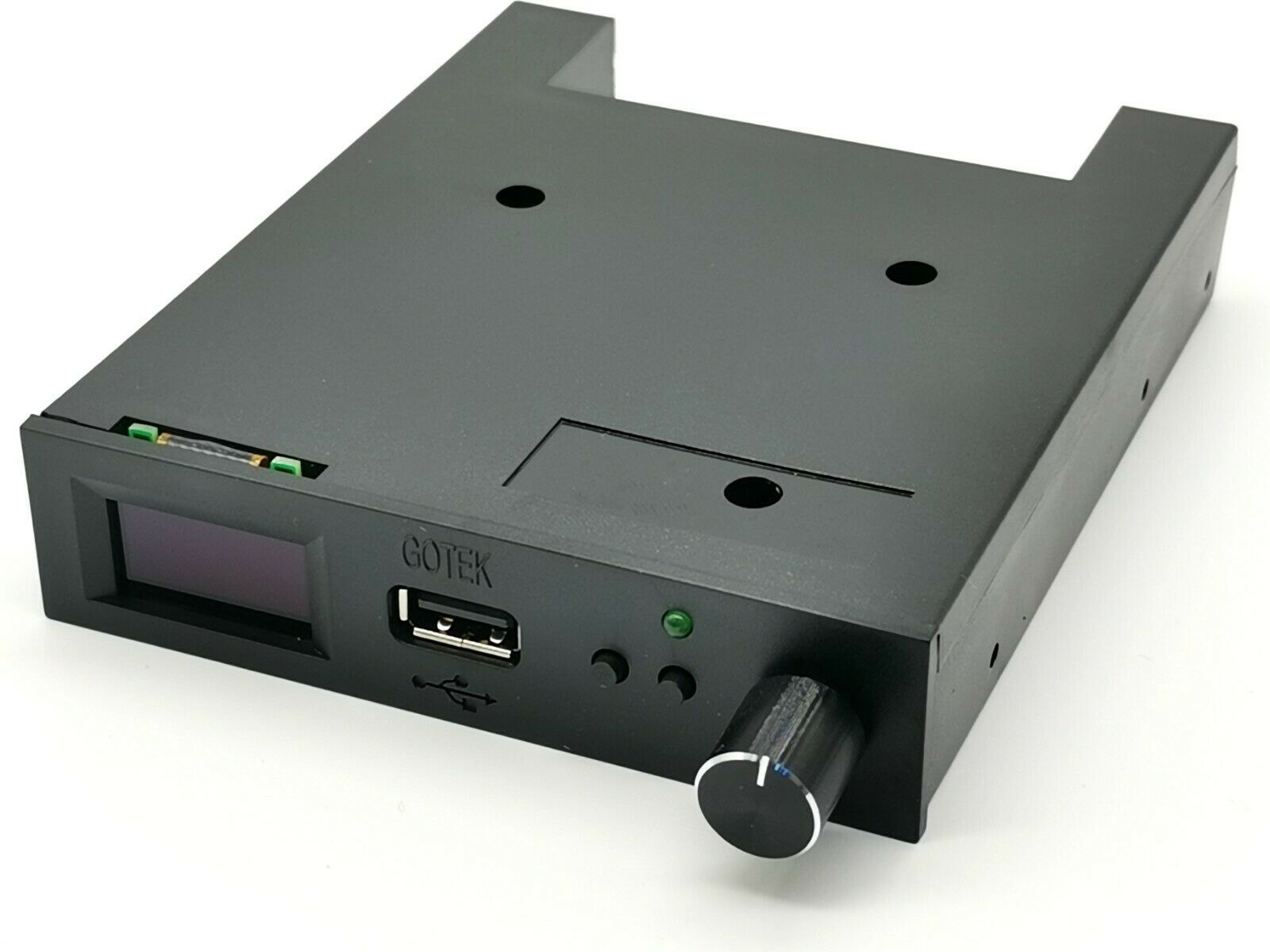

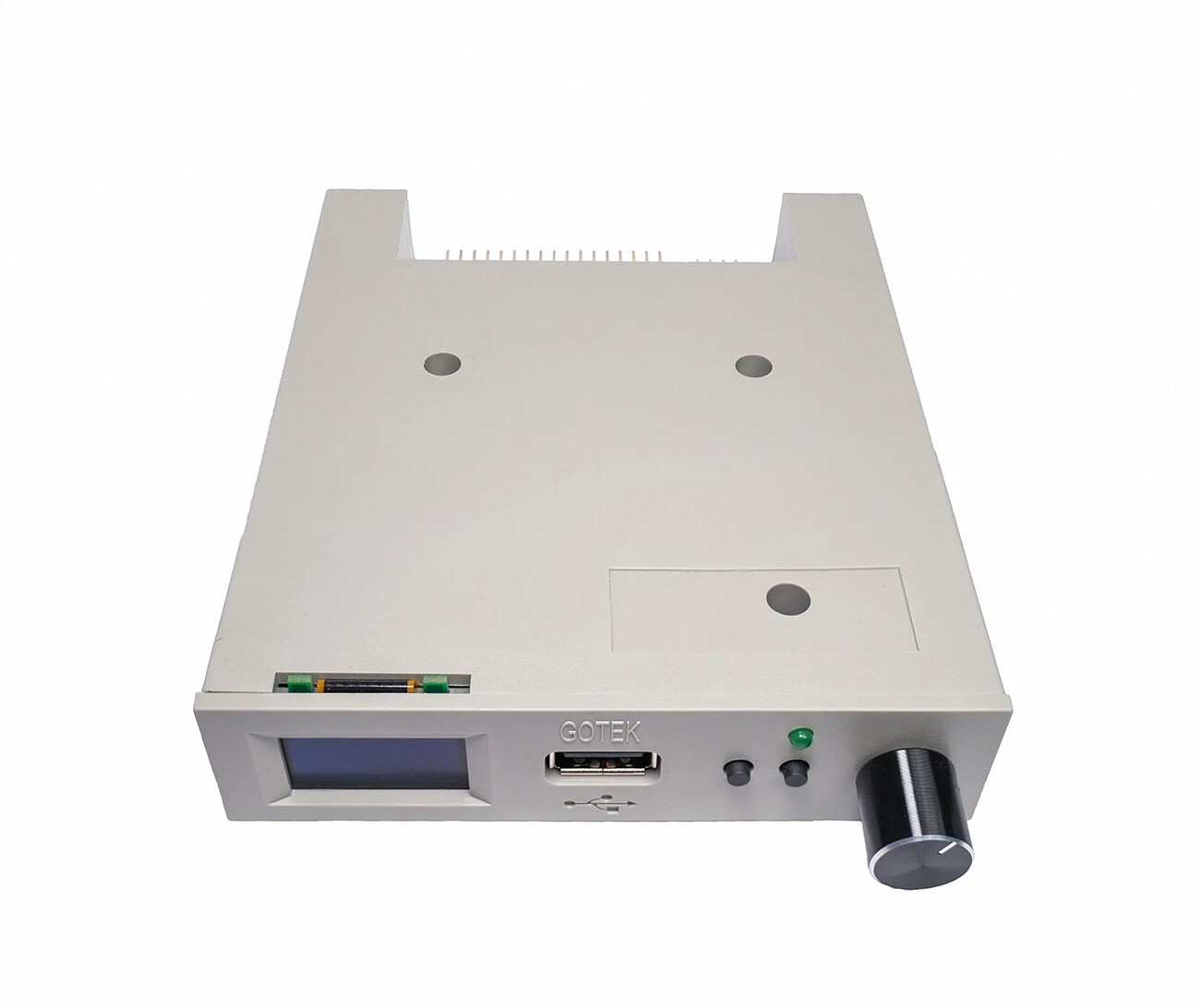

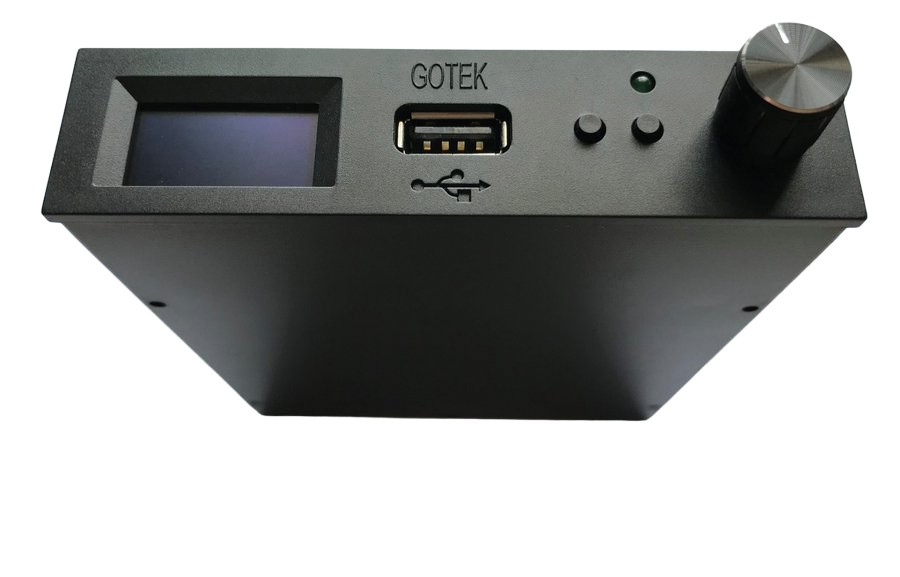

SFR1M44-U100LQD Gotek 3.5inch USB 1.44M Floppy Drive Emulator with OLED Display and Rotatry Encoder

SFR1M44-U100LQD Gotek 3.5" USB 1.44M Floppy Drive Emulator with OLED Display and Rotatry Encoder

Floppy to USB emulator

Model: SFR1M44-U100LQD code*:U04 ***

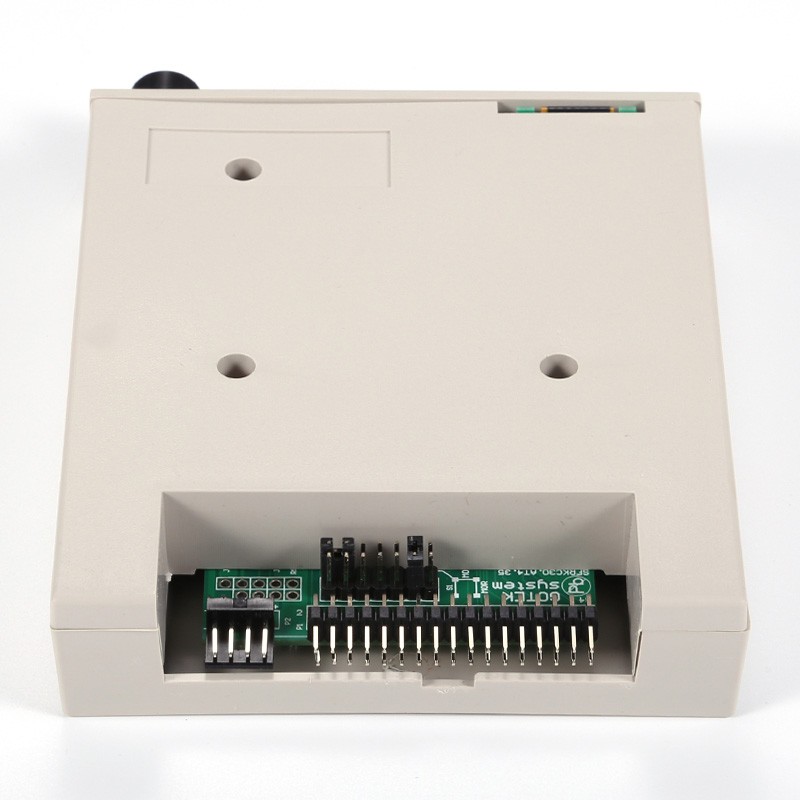

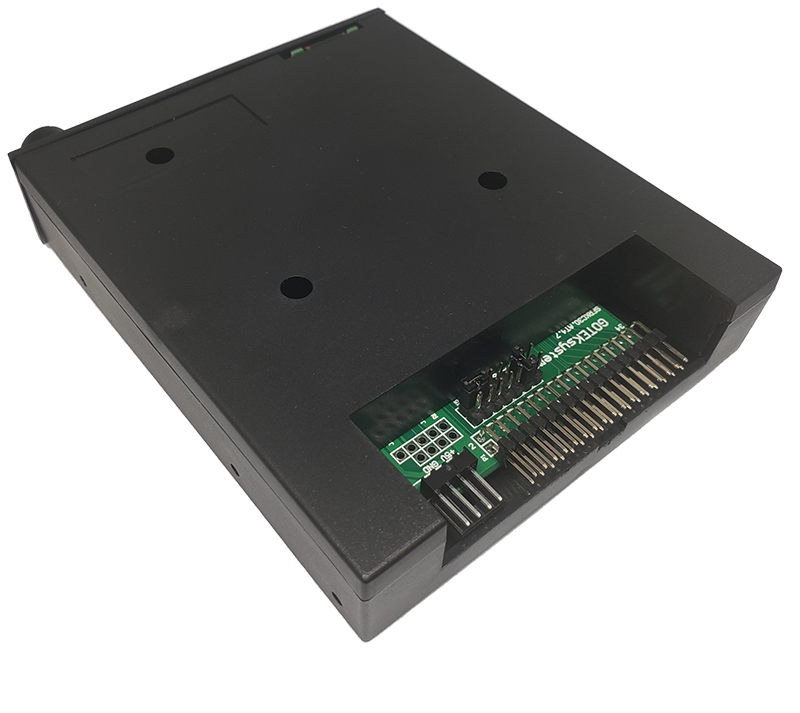

Interface ： 34pin Floppy driver interface, 5V DC power, USB port(Host)

Capacity: 1.44Mb 2HD

Format: Cylinders: 80 Tracks: 160 Sectors/track: 18 Bytes/sector: 512

Data transfer rate: 500kbps

Encoding Method: MFM

Features:

• Using USB disk to transfer data.

• 34pin Floppy driver interface and 5V DC power, same as floppy driver interface, easy to install.

• Up to 1000 partitions can be used.

• Built-in self formatting function.

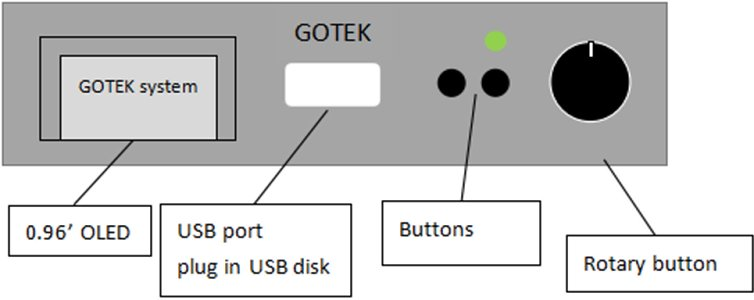

Front Panel:
